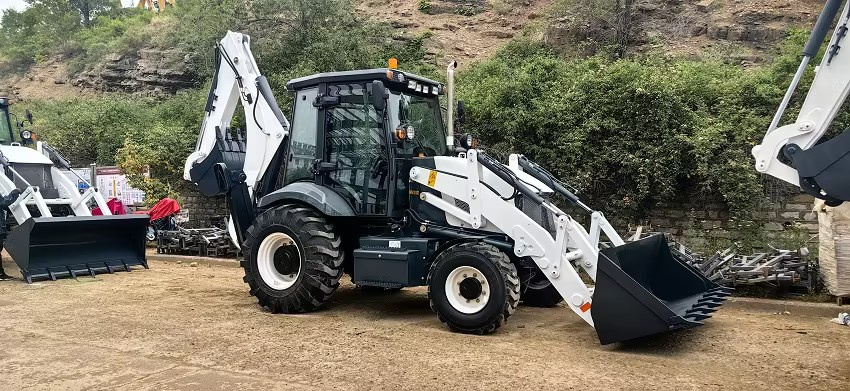

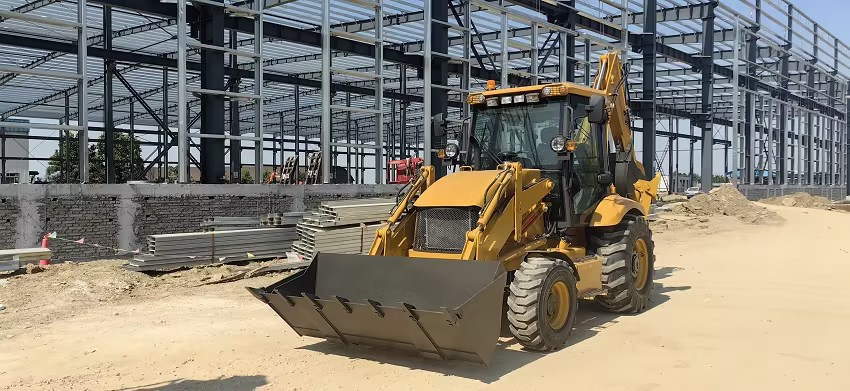

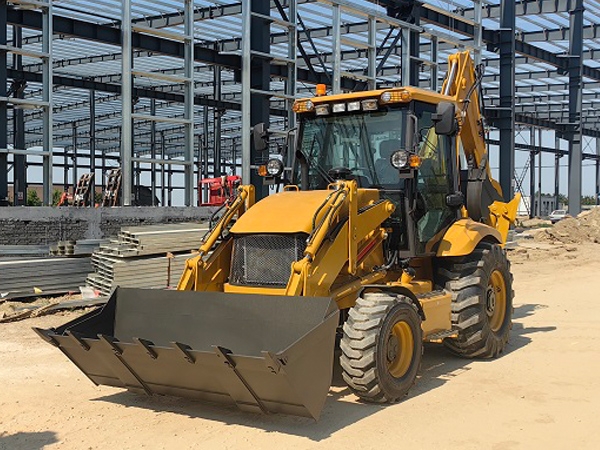

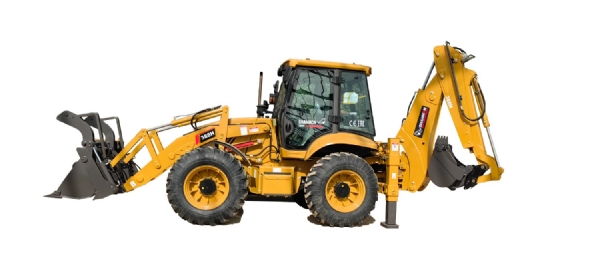

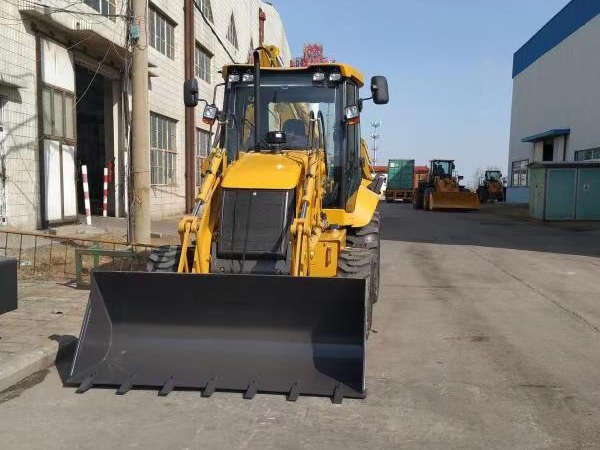

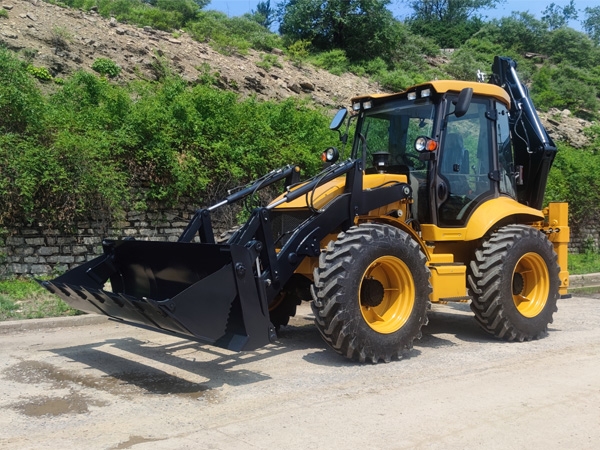

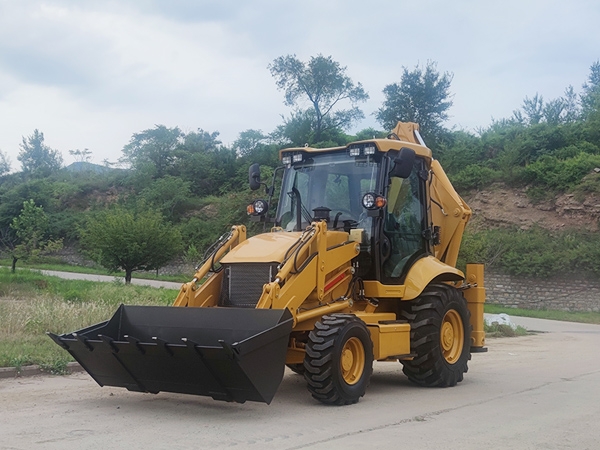

SHANMON388挖掘裝載機

山東威猛工程機械有限公司

公司地址：山東省青州市南環路9567號

2019-12-3

800

信息詳情

一、主要特點：main feature

1.采用高可靠性的液力變矩器和變速箱提供超強動力，加重工程專用橋行走平穩、可靠性高。The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated bridge walking

2.將挖掘機和裝載機兩機合為一體，一機多能。完全具備小型挖掘機和裝載機的所有功能，更適合在狹窄空間作業，方便靈活，工作效率提高30%以上。Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.

3.挖掘、裝載功能全部先導控制，輕便靈活，作業效率高。Mining, loading function all lead control, light and flexible, high operating efficiency.

4.人性化設計旋轉減振座椅，全鋼化成型玻璃駕駛室，視野更寬闊，駕駛更舒適。Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.

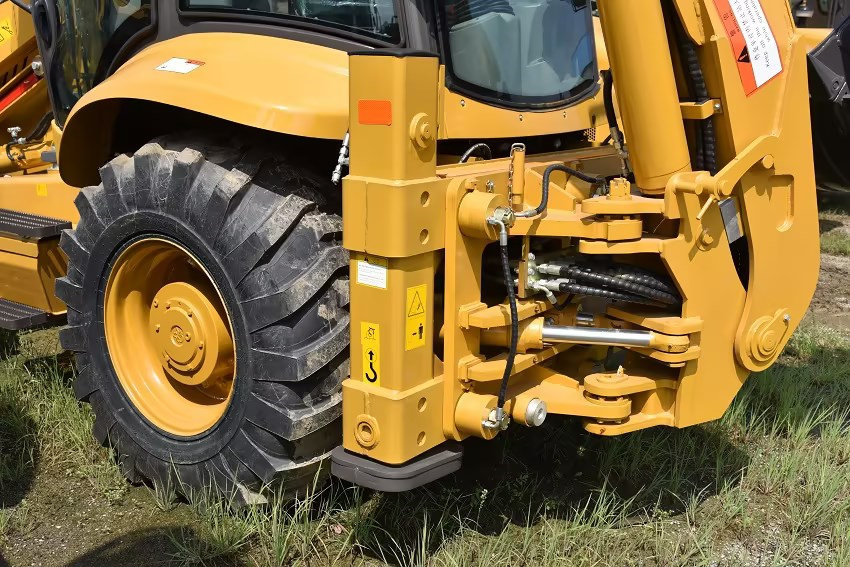

5.挖掘可側向滑移機構裝置，使挖掘作業范圍更大，效率更高。Excavate the lateral sliding mechanism device to make the excavation operation more extensive and more efficient.

6.前翻式護罩的設計，大大提高了整機的維護性。The design of the front flip cover greatly improves the maintenance of the entire machine.

7.可選配多種附具裝置，完成多種施工作業。用于市政、建筑、水利、公路、自來水、供電、園林等部門，可從事農業建筑，管道鋪設，電纜敷設，園林綠化等作業。A variety of accessories can be selected to complete a variety of construction operations. For use in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations

二、SAM388技術參數 The Main Performance Parameter of Backhoe Loader SAM388
整機操作重量Overall Operating Weight	8200KG	輪邊減速型式Final Reducer	一級輪邊減速Single Stage Final Reducer
運輸尺寸Transport Dimension		額定橋載荷Rated Loader of Axle	8/18.5t
長×寬×高mm LWH	6120×2410×3763
駕駛室到地面高度cab to ground mm	2900mm	傳動系統Transmission System
軸距 Wheel base	2248mm	變矩器Torque Converter
Z小離地間隙 Min. Ground Clearance	300mm	型號Model	YJ280
裝載斗容 Bucket Capacity	1.0m3	型式Type	單級、單相三元件Single-stage Three Elements
掘起力Breakout Force	38KN	Z高效率Max. Efficiency	84.4%
裝載舉升能力Loading Lifting Capacity	2500KG	變速箱Gearbox
鏟斗卸載高度Bucket Dumping Height	2700mm	型式Type	定軸式動力換檔Fixed Shaft Power Transmission
鏟斗卸載距離Bucket Dumping Distance	925mm	離合器操縱油壓Oil Pressure of Clutch	1373Kpa—1569 Kpa
鏟挖深度 Digging Depth	52mm	檔位數Gears	前進2檔，后退2檔Two Gears Ahead, Two Gears Astern
反鏟斗容Backhoe Capacity	0.3 m3	Z高車速M(fèi)ax.Speed	28Km/h
Z大挖掘深度Max. Digging Depth	4082mm/4500mm/ 5300mm	輪胎Tyre
挖斗回轉角Swing Angle of Excavator Grab	190o	規格Model	14-17.5/19.5L-24
Z大牽引力Max. Pulling Force	39KN	前輪氣壓Pressure of Front wheel	0.55Mpa
發動機Engine		后輪氣壓Pressure of Back Wheel	0.223Mpa
型號Model	CYD YC4A105Z-T20	制動系統Brake System
型式Type	直列、直噴、四沖程、直噴燃燒室In Line Direct injection Four-Stroke and Injection Combustion Chamber	駐車/緊急制動Emergency Brake	操縱力實施制動Operation Power Implementing brake
氣缸數-內徑行程Cylinder-Inside DiameterStroke	4-108×132		手操縱力解除制動Manual Operation Power Terminating Brake
額定功率Rated Power	75KW	行車制動Service Brake	氣頂油鉗盤制動Air Over Oil Caliper Brake
額定轉速Rated Speed	2200r/min		外置式External Type
Z低燃油率Min. Fuel Consumption	≤230g/km.h		自調節Self-regulation
Z大扭矩Max.Torque	≥400N.M		自平衡Self-balance
排量Displacement	4.837L	液壓系統Hydraulic System
轉向系統Steering System		挖斗挖掘力Digging Power of Excavator Grab	46.5KN
轉向器型號Model of Steering Device	BZZ5-250	斗桿挖掘力Digging Power of Dipper	44KN
轉向角Steering Angle	±36 o	鏟斗提升時間Bucket Lifting Time	6．8S
Z小轉彎半徑Min. turning radius	6581mm	鏟斗下降時間Bucket Lowering Time	3.1S
系統壓力Pressure of the system	18Mpa	鏟斗卸載時間Bucket Discharge Time	2.0S
驅動橋Axle
生產廠家Manufacturer	肥城Feicheng	主傳動型式Main Transmission Type	雙級減速式Double Reduction
