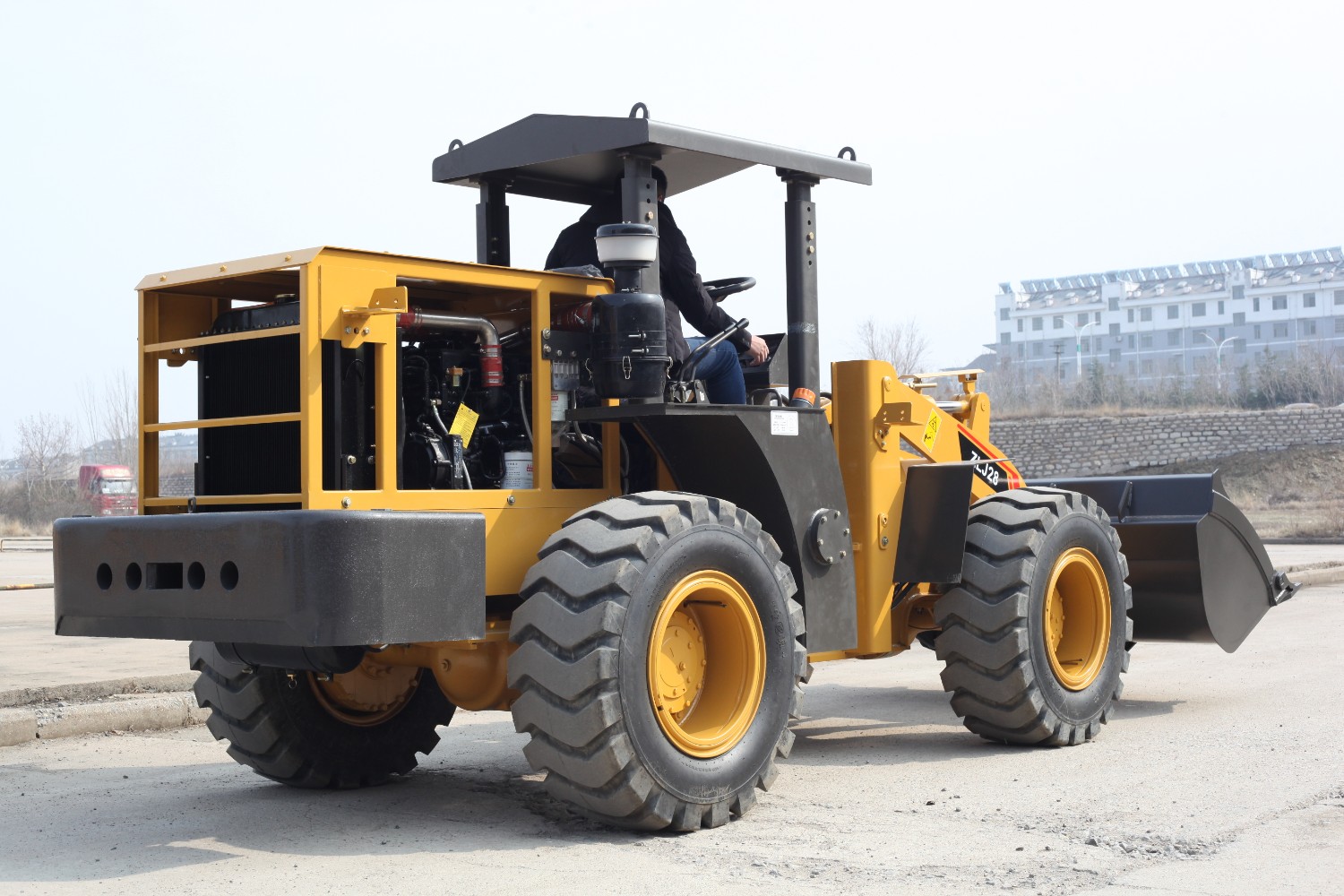

一、發動機Engine

1、采用英國里卡多技術生產的一拖發動機，動力強勁，額定功率60KW；后置雙水過濾排煙量?。籄 trailer engine using British Ricardo Technology, strong power, rated power of 60KW; rear dual water filter exhaust volume small;

2、該機采用油濾，過濾效果好，適合在粉塵密度大的環境內作業；The machine adopts oil filter, the filter effect is good, suitable for working in the environment with high dust density;

3、排氣系統采用防爆型，排煙少，污染小，噪聲低，環保效果好，非常適合在巷道或煤礦井下作業；The exhaust system adopts explosion-proof type, less smoke, less pollution, low noise, good environmental protection effect, very suitable for working in the roadway or underground coal mine;

4、發動機覆蓋采用高強度板材，堅固耐用，能夠有效保護發動機，避免原煤塊砸壞發動機。The cover of the engine is made of high-strength sheet metal, which is strong and durable and can effectively protect the engine from being damaged by raw coal blocks.

二、變矩器Torque converter

采用YJ-280型單極三元件變矩器，可靠性高，輸出扭矩大。Yj-280 single-pole three-component torque converter with high reliability and large output torque.

三、變速箱Transmission box

采用動力換檔變速箱，可靠性高，維修簡便。

Adopt power shift gearbox, high reliability, easy to maintain.

四、防落物駕駛棚Fall-proof shed

1、  整機高度為2.31m、寬度2.05m，中小型煤礦巷道可以自由通過；駕駛棚可以簡單方便地拆裝，拆掉駕駛棚后，整機最高1.7m，可以靈活地在低矮巷道內行駛。The height of the whole machine is 2.31 m, the width is 2.05 m, the middle and small coal mine laneways can pass freely, the driving shed can be simply and conveniently disassembled and assembled, after the driving shed is removed, the whole machine can be up to 1.73 m, and can be driven flexibly in the low laneways.

五、照明系統Lighting System

1、  采用大容量蓄電池，照明燈可連續照明4小時，仍然能夠啟動發動機；

Using A large-capacity battery, lighting can continue to illuminate for 4 hours, still can start the engine;

2、  照明燈功率高達100W，更適合在非常黑暗的環境內作業；Lighting power up to 100W, more suitable for working in very dark environment;

六、作業效率Operational efficiency

1、  工作鏟斗額定斗容1.0立方米，鏟斗裝滿后容積可高達1.5立方米，非常適合鏟裝原煤；The rated capacity of the working bucket is 1.0 cubic meters, and the capacity of the bucket can be as high as 1.5 cubic meters when it is filled, which is very suitable for loading raw coal with shovels

2、  每小時可裝載原煤120立方米，作業效率高。It can load 120 cubic meters of raw coal per hour with high working efficiency.

七、主要技術參數Main technical parameters

Ⅰ檔速度I speed

10Km/h

Ⅱ當速度II when speed

24Km/h

鏟斗舉升時間Bucket lift time

4.8s

下降時間Descent time

3.3s

卸料時間Discharge time

 1.1s

牽引力  traction force

38.2KN

掘起力Pick up the power

轉斗Turning bucket48.8KN

舉升Lift28.6KN

整機尺寸overall dimension (L×W×H)

5670×2050×2310(mm)

轉彎半徑Turning radius

鏟斗外側Outside bucket6828mm，輪胎Tires4775mm
